SCHEGOLUX~ LIGHTING SYSTEM PUTS YOUR GARDEN IN ITS TRUE LIGHT –
“DO IT YOURSELF” – APPLICABLE ABOVE AND UNDER WATER
“DO IT YOURSELF” – APPLICABLE ABOVE AND UNDER WATER
LIGHTING TECHNOLOGY FOR GARDEN AND POND
INDIVIDUAL LIGHTING FOR GARDEN, POND AND PATIO
The schegoLUX~light system offers a vast variety of possibilities for evocative illumination in garden and pond.
Its extensive range of basic equipment, the modular design of this 12 V plug-in system and the large number of optional accessories guarantees a high level of creative freedom, combined with simple handling.
The fully adjustable light beam angle and the numerous fastening variants with screw thread enable individual placement above and under water.
The basic equipment of all light units includes four possibilities of fastening (floor plate, spit, mounting foot, brass dowel), a cable clip and a special spanner for installation.
All lamps are applicable above and under water.
schegoLUX~light system for garden and pond
schegoLUX~mini
art.no. 309
Power-LED 1 W warm white
12 V/50 Hz
IP 68
Power-LED 1 W warm white
wide range of assembling accessories
cable 5 m
Ø lamp housing 30 mm – length 50 mm
Reserve technical changes
schegoLUX~light
art.no. 301
12 V/50 Hz – max. 10 W
IP 68
incl. reflector and spotlight attachment
incl. halogen illuminant 10 W
wide range of assembling accessories
cable 5 m
Ø lamp housing 24 mm – length 78 mm
optional illuminant:
art. no. 371
LED 1,5 W warm white
Reserve technical changes
schegoLUX~spot
art. no. 300
12 V/50 Hz – max. 20 W
IP 68
incl. four colour discs
(red, green, blue, yellow)
incl. High-Power-LED 2,5 W warm white
wide range of assembling accessories
cable 5 m
Ø lamp housing 46 mm – length 71 mm
Reserve technical changes
schegoLUX~spot with glare guard
art. no. 311
12 V/50 Hz – max. 20 W
IP 68
incl. four colour discs
(red, green, blue, yellow)
incl. High-Power-LED 2,5 W warm white
incl. turnable glare guard
wide range of assembling accessories
cable 5 m
Ø lamp housing 46 mm – length 108 mm
Reserve technical changes
schegoLUX~max
art. no. 312
12 V/50 Hz – max. 20 W
IP 68
incl. four colour discs
(red, green, blue, yellow)
incl. LED 5,5 W warm white
wide range of assembling accessories
cable 5 m
Ø lamp housing 61 mm – length 85 mm
optional illuminants:
art. no. 392
High-Power-LED 3 W RGB
(requires controller – art. no. 391)
Reserve technical changes
schegoLUX~max with glare guard
art. no. 313
12 V/50 Hz – max. 20 W
IP 68
incl. four colour discs
(red, green, blue, yellow)
incl. LED 5,5 W warm white
incl. turnable glare guard
wide range of assembling accessories
cable 5 m
Ø lamp housing 61 mm – length 131 mm
optional illuminants:
art. no. 392
High-Power-LED 3 W RGB
(requires controller – art. no. 391)
Reserve technical changes
schegoLUX~base
3-pieces-set
12 V/50 Hz – 3 x 0,2 W
IP 68
Ø 30 mm – depth 21 mm
cable 2 m apiece
art. no. 395
LED recessed spotlight – white
art. no. 396
LED recessed spotlight – red
art. no. 397
LED recessed spotlight – green
art. no. 398
LED recessed spotlight – blue
art. no. 399
LED recessed spotlight – amber
Reserve technical changes.
schegoLUX~air
art. no. 306
12 V/50 Hz – max. 35 W
IP 68
garden pond outflow nozzle with halogen spotlight
incl. four colour discs
(red, green, blue, yellow)
incl. halogen illuminant 35 W
cable 10 m
airhose 10 m / nonreturn valve
not including airpump (art. no. 307)
Ø lamp housing 61 mm – length 131 mm
optional illuminant:
art. no. 378
High-Power-LED 2,5 W warm white
Reserve technical changes.
schegoLUX~air-pump
art. no. 307
12 V/50 Hz – 5 W
IP 43
cable 10 m
airflow 250 l/h
190 mm x 110 mm x 70 mm
Reserve technical changes

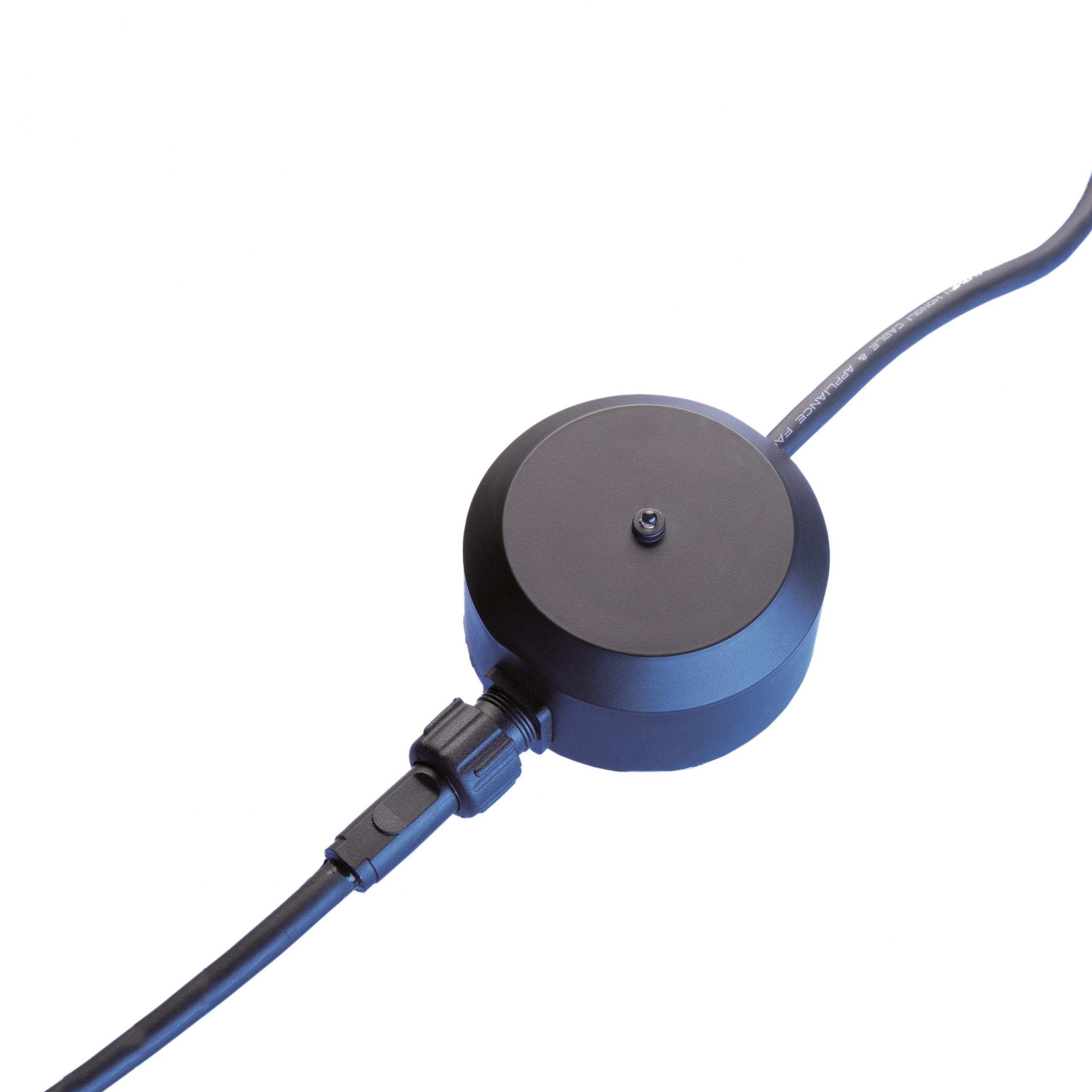

schegoLUX~Sensorflex
art. no. 314
12 V/50 Hz – max. 105 W
IP 44
twilight switch
with on/off switch and time control
cable 1,5 m
Reserve technical changes
